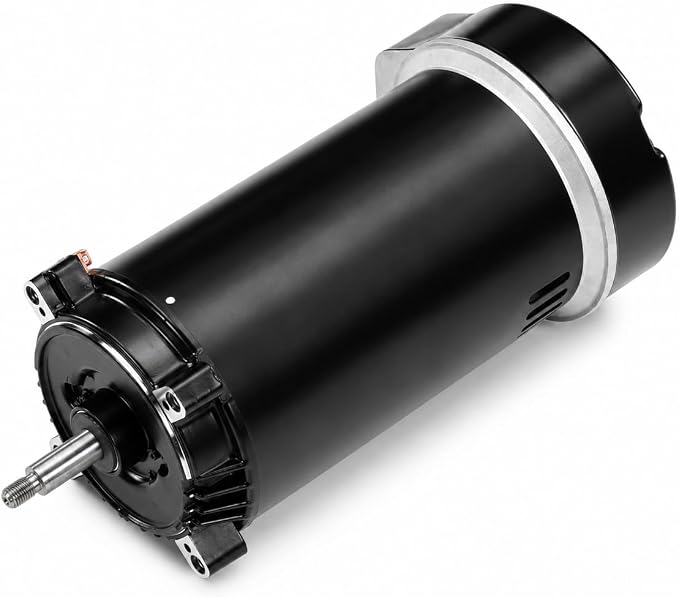

Century Centurion PRO pool and spa pump motor. Nameplate 1.5 HP, service factor 1.00, total horsepower 1.50 THP. SF is 1.00, so the nameplate HP and the THP are the same number.

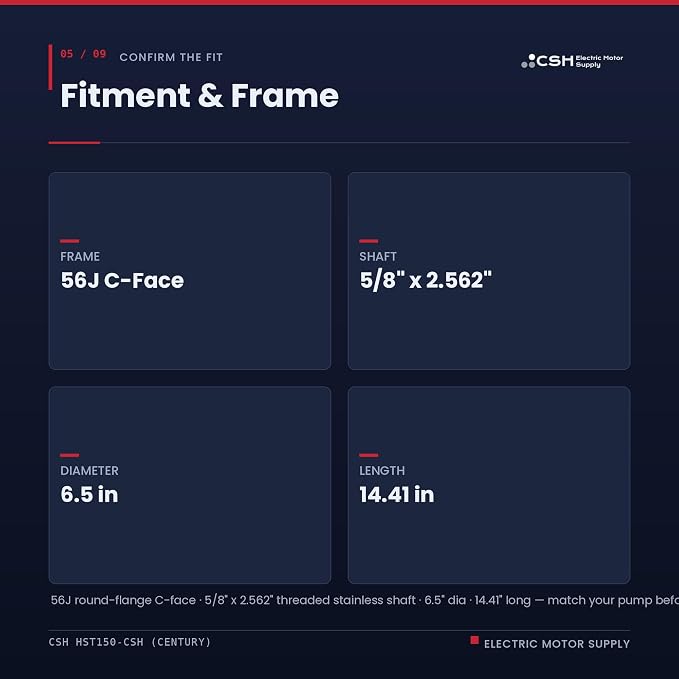

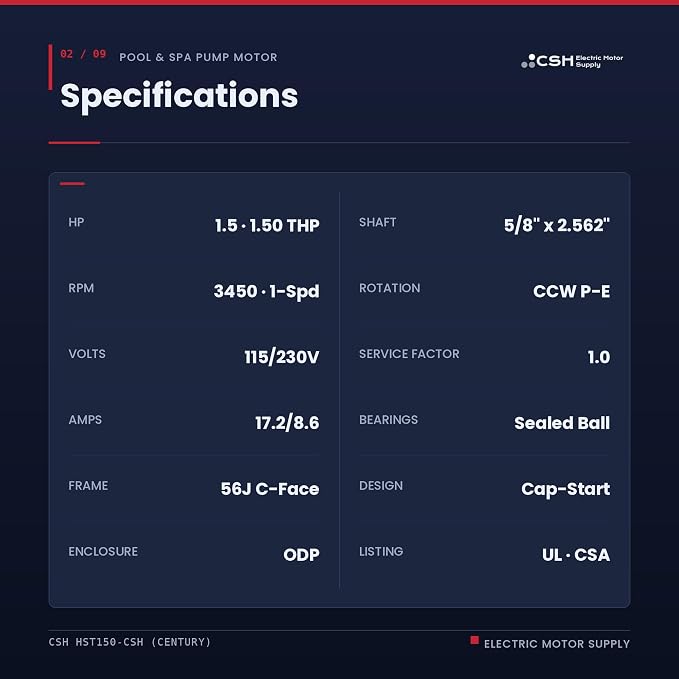

FIT-CRITICAL: 56J frame, ROUND C-face flange, 7/16 in threaded 303 stainless shaft 5/8 in dia x 2.562 in. Single speed 3450 RPM, 115/230 V, 60 Hz, 1 phase, 17.2/8.6 A, open drip proof.

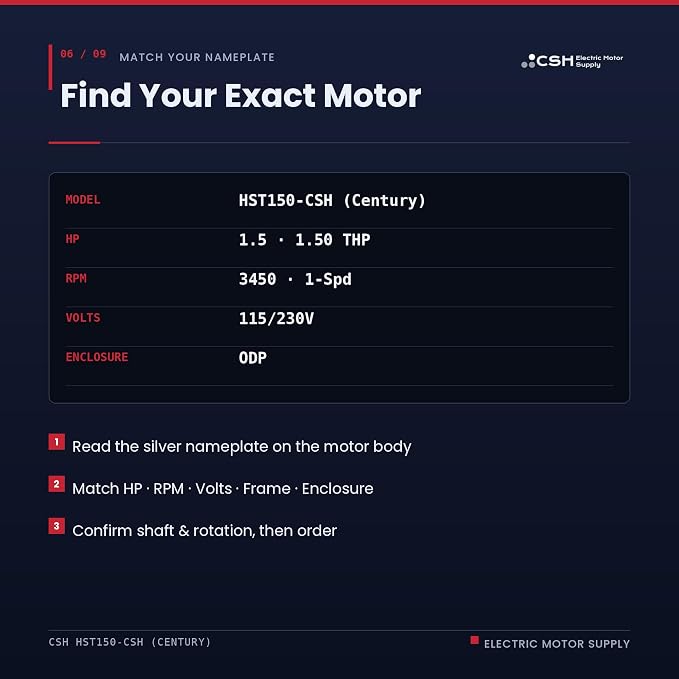

WRONG-FIT TRAP, round versus square flange. Read the frame code off your old nameplate and look at the pump-end face. This is 56J ROUND. A SQUARE plate with four corner bolts will not mount.

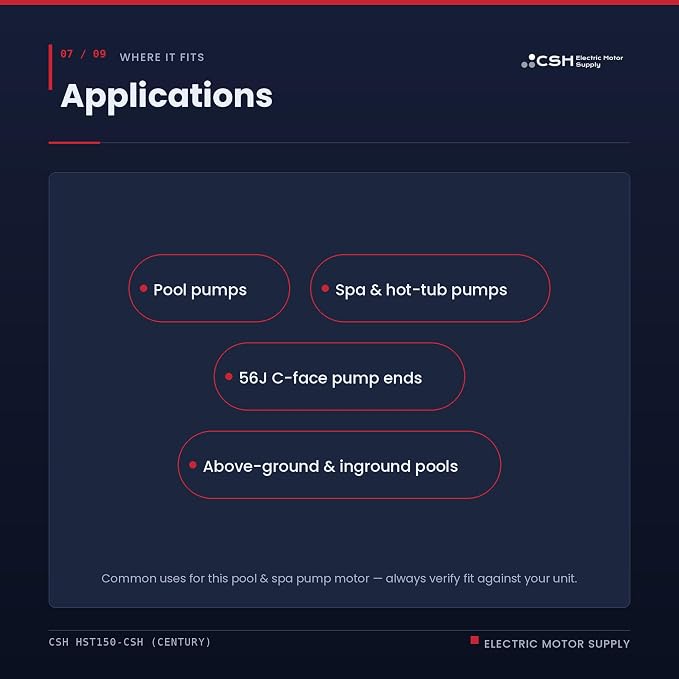

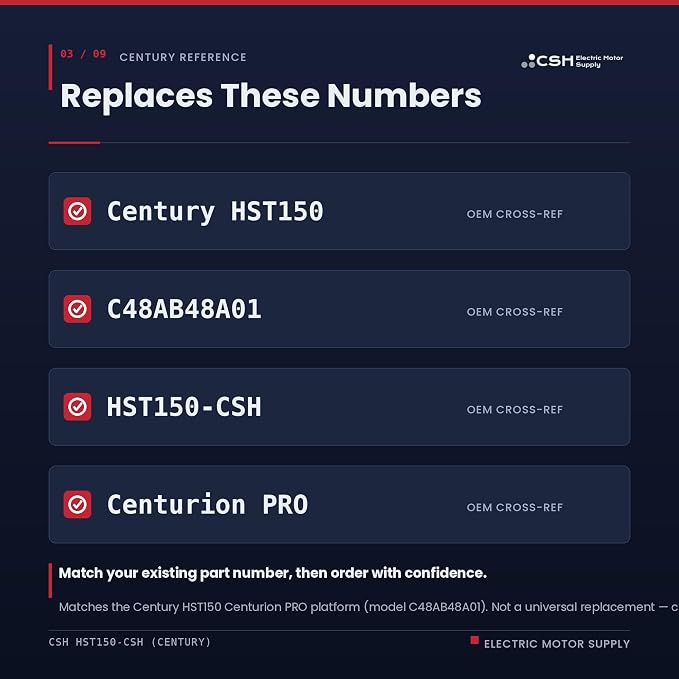

Cross-references UST1152, EUST1152, C1319, ST1102, EST1102, C1100, C48AB48A01. Suppliers list it for 1.5 HP Hayward Super Pump style wet ends taking a 56J round-flange threaded-shaft motor.
Motor only. No capacitor is included, supplied or shipped with this motor. No wet end, mounting base, seal kit or mounting hardware is included in the box.
