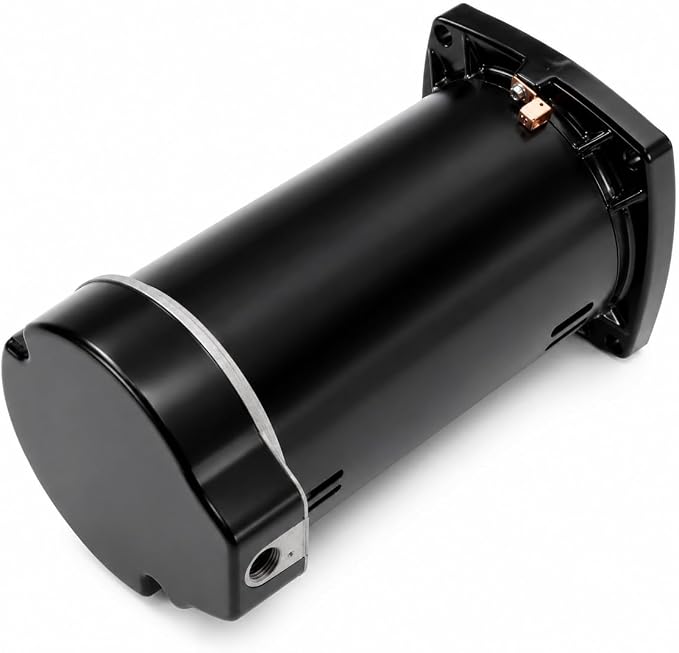

Century HSQ125 Pool Motor 1.25HP 1.25THP 48Y Square Flange 3450RPM 115/230V | Single-speed 1.25 THP square-flange motor. Match total HP and flange shape first. Motor only, no capacitor.

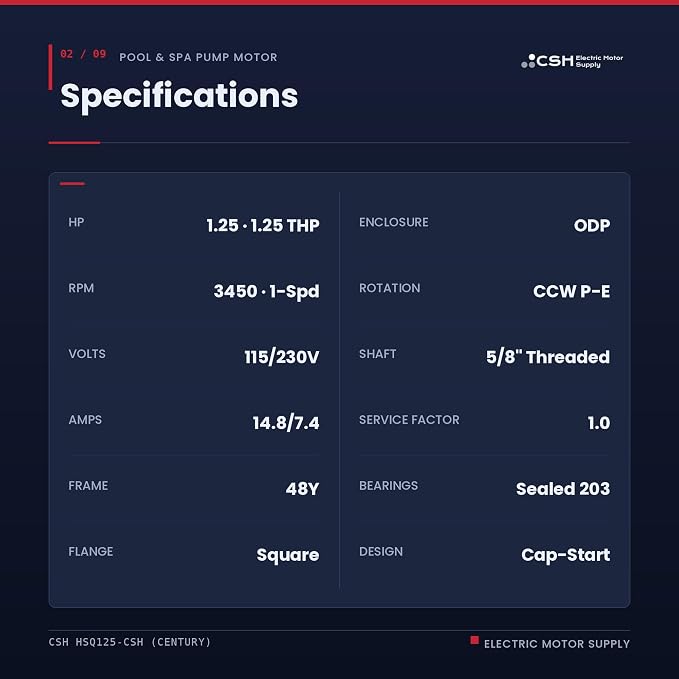

WHAT IT IS: Century Centurion PRO single-speed pool pump motor, 1.25 nameplate HP at a 1.00 service factor, which Regal Rexnord publishes as 1.25 total horsepower (THP). 3450 RPM, 60 Hz, 1 phase.

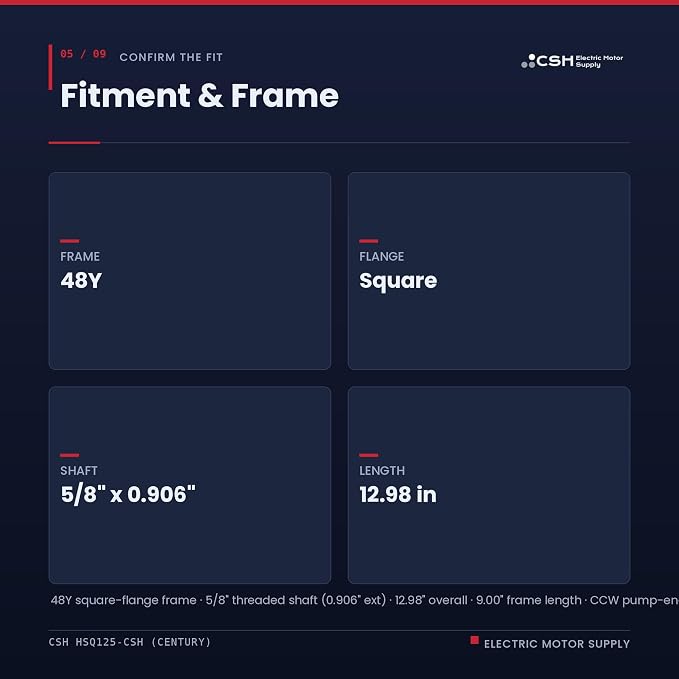

FIT-CRITICAL FRAME AND FLANGE: 48Y frame with a SQUARE flange. It bolts to square-flange pump housings only. It is not a round-flange or C-face motor (48J/56J), and it is not a 56Y frame motor.

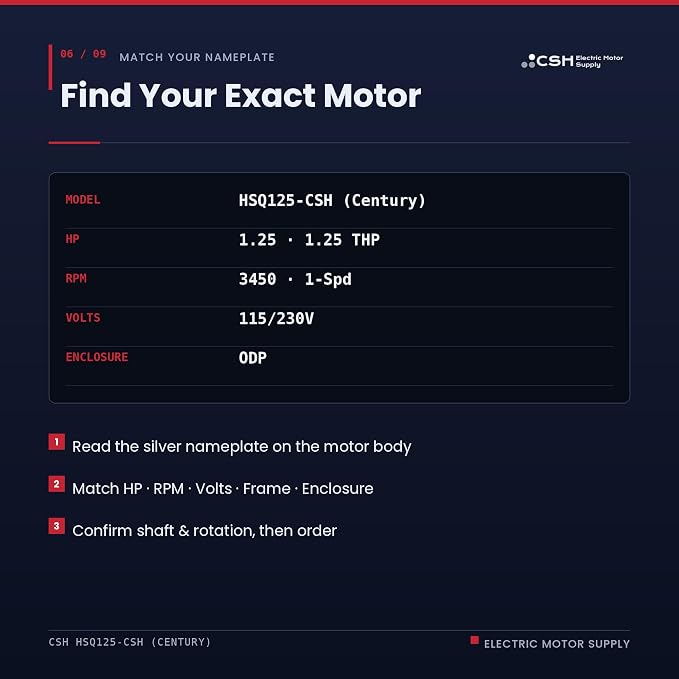

THE WRONG-FIT TRAP: match TOTAL HP, not nameplate HP. Read HP and service factor off the old nameplate and multiply. This one is 1.25 THP. Then check the mount is a flat square plate, not round.

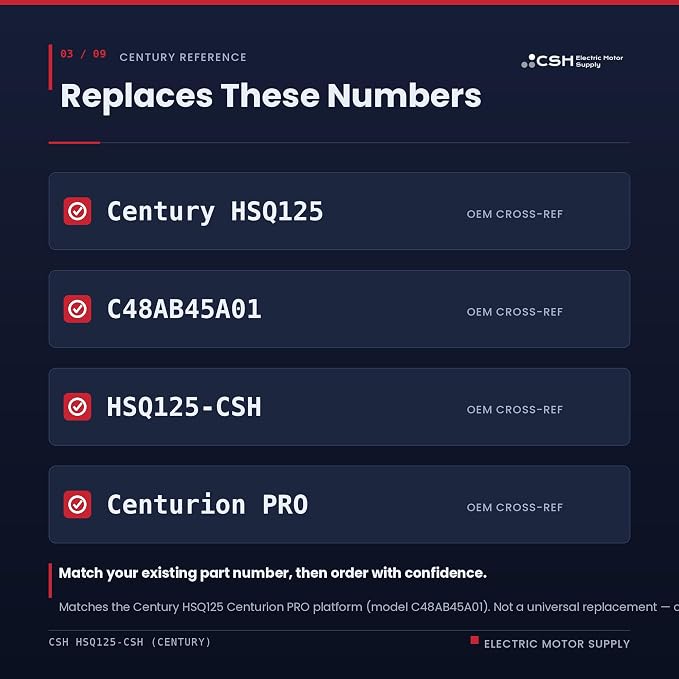

CROSS-REFERENCE: Regal replacement guide maps HSQ125 to Century SQ1072 and USQ1102, Nidec U.S. Motors ESQ1072 and EUSQ1102, SN Tech C1305 and C1245. Residential pool and spa circulation duty.
WHAT IS IN THE BOX: the motor by itself. No capacitor, no shaft seal, no gasket or tune-up kit, no wiring, no mounting hardware. Nothing beyond the motor is supplied.
